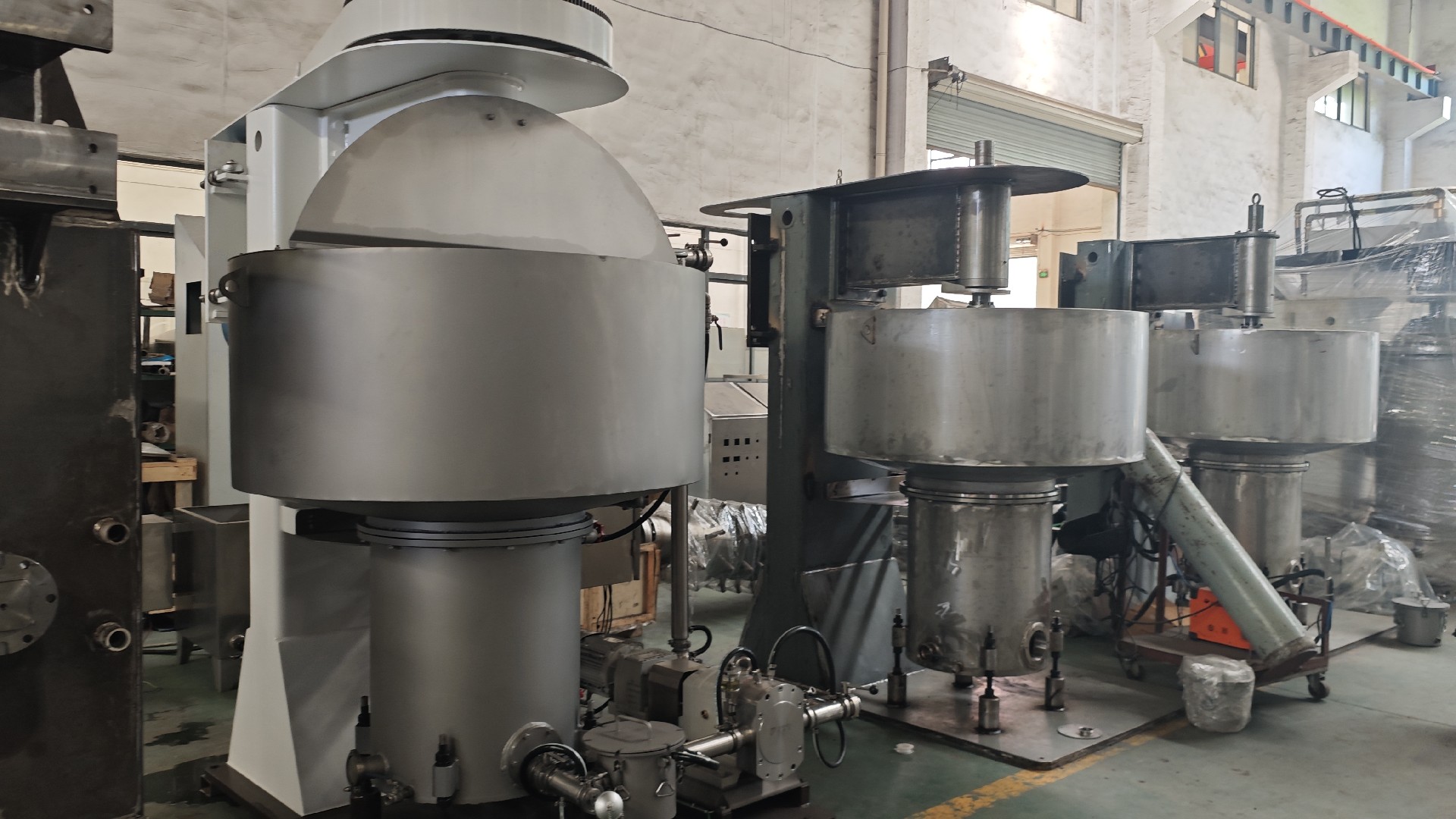

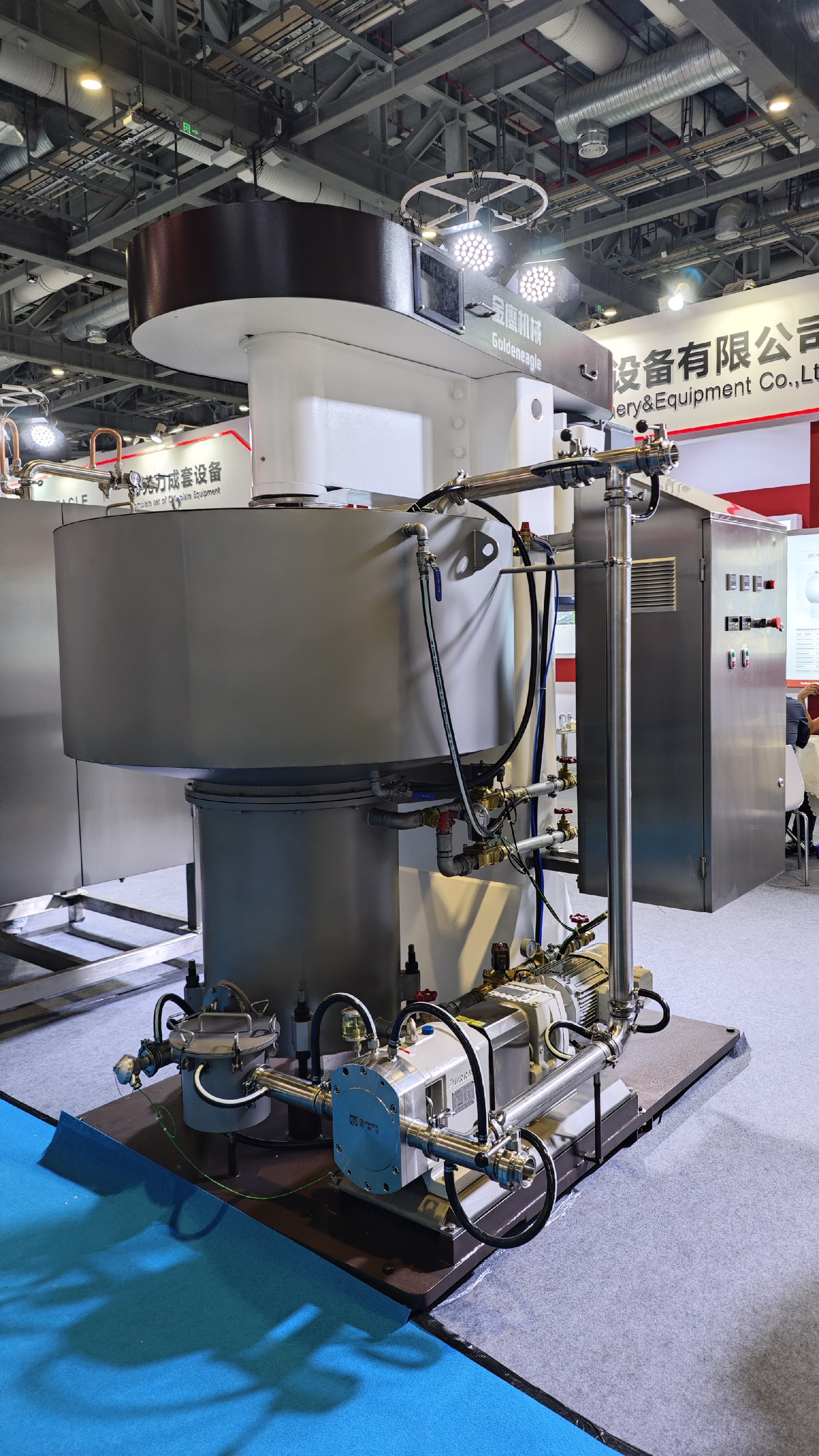

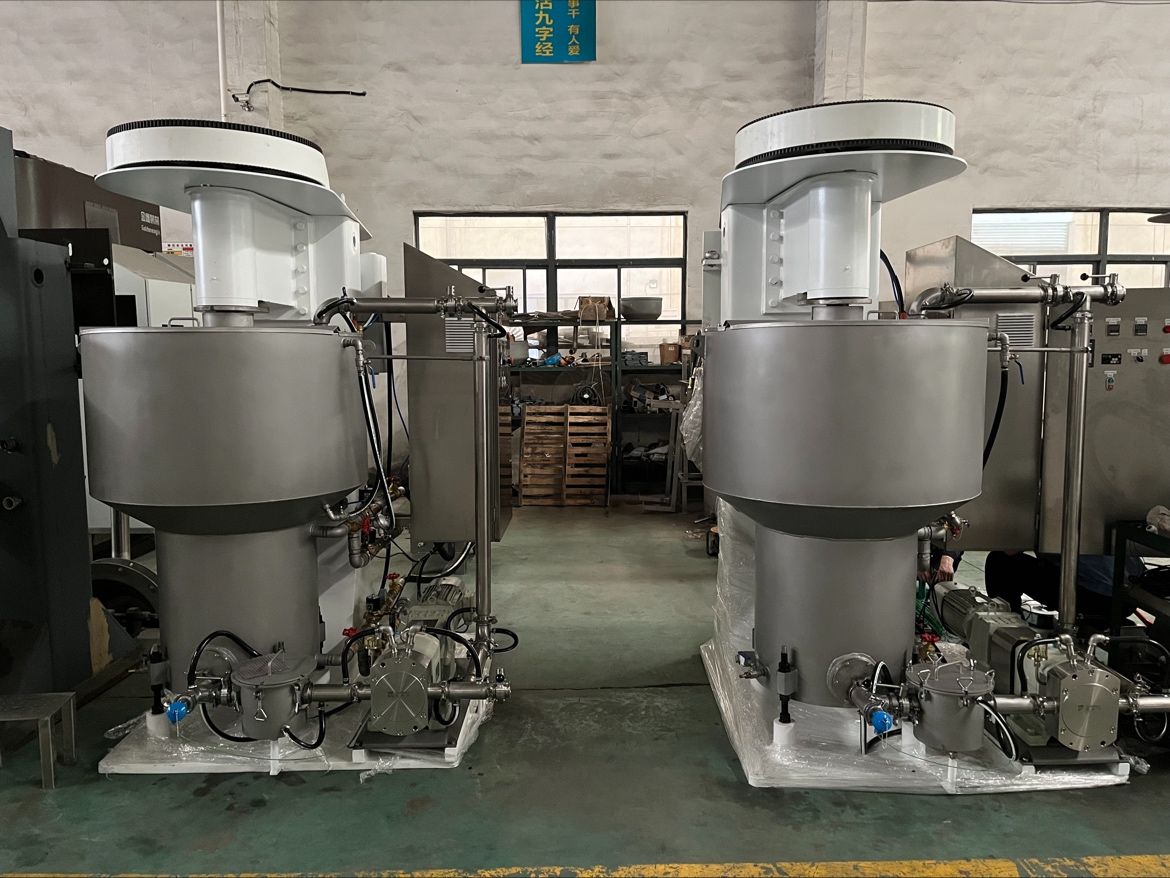

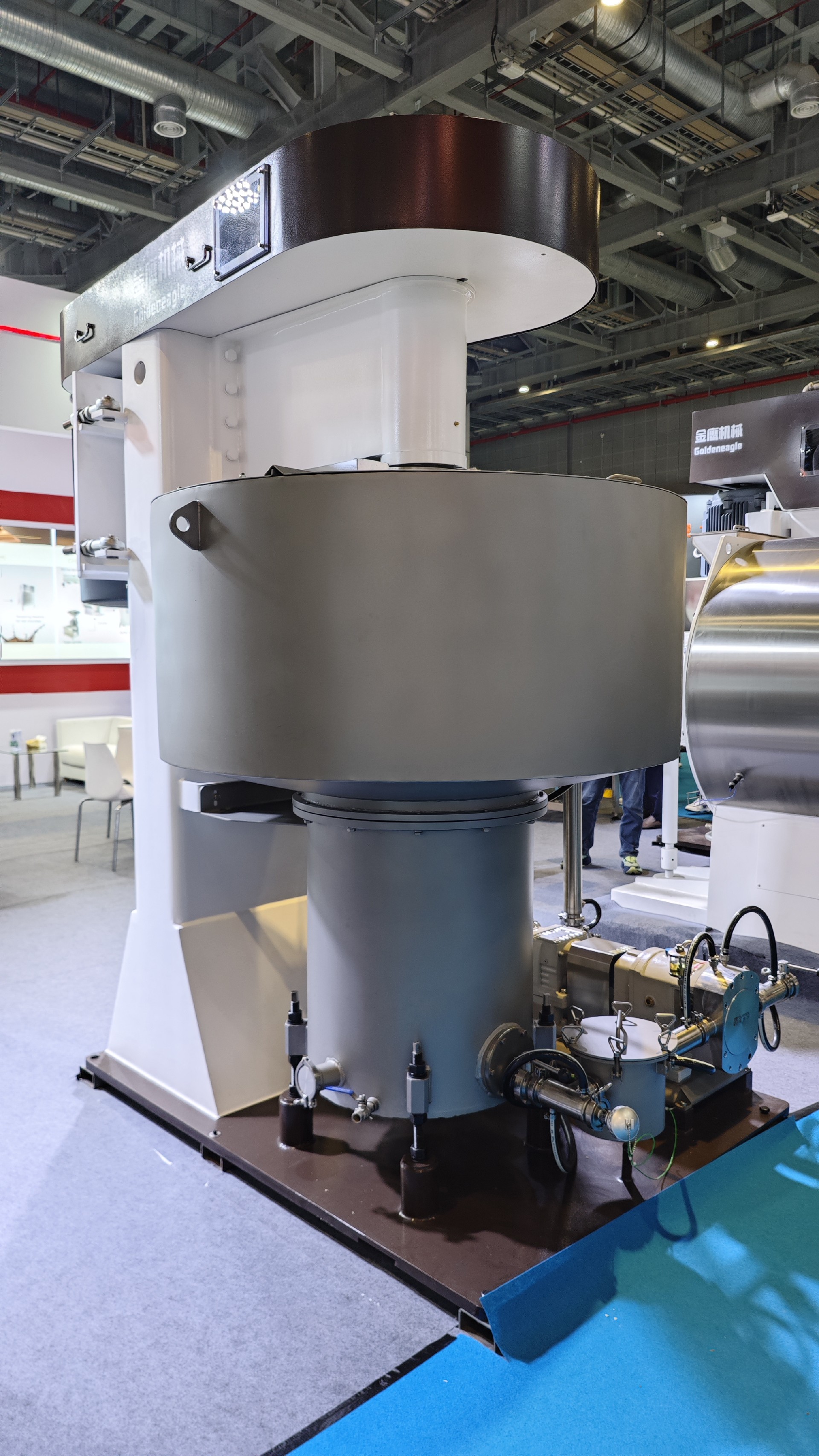

300-500L/batch Ball Mill Machine

300kg and 500kg batch capacity chocolate ball mill for smooth chocolate paste refining to 18-22 microns.

Specifications

Size	300kg/batch	500kg/batch
Grinding fineness	18-22micron	18-22micron
Main motor power	37kw	37kw
Circulated chocolate pump	2.2kw	2.2kw
Hot water tank electrical heating power	3kw	3kw
Steel balls quantity	300kg	500kg
Outside Dimension	150019002300mm	235015002550mm
Weight	2500kg	3500kg

Description

The Ball Mill Machine refines chocolate raw materials into a smooth paste through the collision and friction between steel balls and the chocolate mass, controlling particle size to 18-22 micrometers.

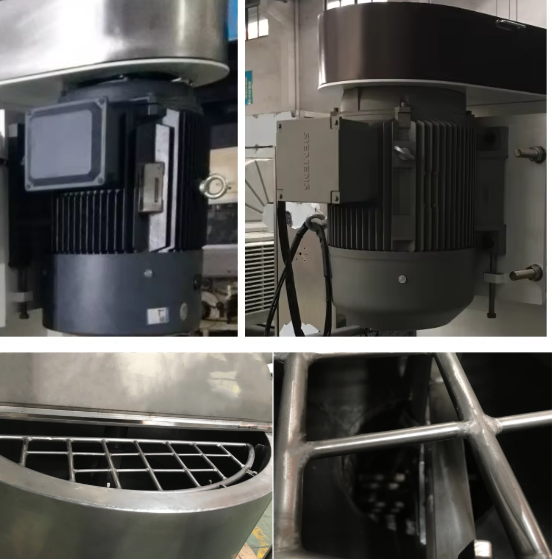

Available in 300kg and 500kg batch sizes, both models feature a 37kW main motor, a 2.2kW circulation chocolate pump and 3kW hot water tank heating. Machine weights are 2500kg and 3500kg.

Continuous mixing inside the mill ensures even distribution of all ingredients for stable quality and consistent taste.

Features

It can produce different products, like chocolate mass, cocoa mass, creams for filling and nuts paste, etc;

Capacity ranges from 300kg/batch to 1500kg/h, which can meet different customer's demand;

For 300kg/batch ball mill, it can work with conche refiner to improve grinding efficiency and flavors of chocolate;

For continuous ball mill, the main shaft is hollow and with cooling water circulation to promise the quality of refined chocolate.

With level sensors on buffer tank to guarantee continuous production;

We developed the design of rods on shaft for avoiding the leakage.

Product Advantages

Our chocolate ball mill is not only applied to producing chocolate mass or cocoa mass, but also to nuts paste or fillings. So it's suitable for chocolate manufacturers, cocoa processors and bakery manufacturers. We have 300kg/batch to 1500kg/h which can meet a wide rang of customers' demand. Moreover, we have 20L ball mill for beginners and chocolate shops.

Our continuous ball mill is one pass, which means the raw materials does not need to be circulated between conche refiner and ball mill or inner circulation. So it will improve the grinding efficiency, save the energy and labor cost. The main shaft is hollow and circulated with cooling water during ball mill is working. It will bring high quality of refined products for customer, since the inner temperature is controlled in proper range. The advantages of our 300kg/batch ball mill have separated heating and cooling; products can be inner circulation or outer circulation between conch refiner and ball mill; belt transmission, which brings high efficiency and low noise.

FAQ

We have two types of ball mill. Our circulated ball mill, it does not need pre-refiner or mixer. You just need to feed all raw materials into the tank. For continuous ball mill, it needs pre-refiner to make the raw materials 50-70 microns.

Our chocolate ball mill is equipped with hot water tank, so you need to prepare for a cooling water system. We can supply it for you or you can buy it from your local market.

We have a full set of parts in our warehouse, which can be sent out immediately, and customers can receive them within 3-7 days.

60-90 days after receiving your advanced payment and confirmed technical parameters sheet.

Our ball mill needs at least 30% fat in raw materials.

Conche refiner has the function of mixing, refining and conching, so it's simple and convenient for manufacturers. Ball mill has grinding function only, so it needs to work with conching machine when it's producing pure chocolate.
