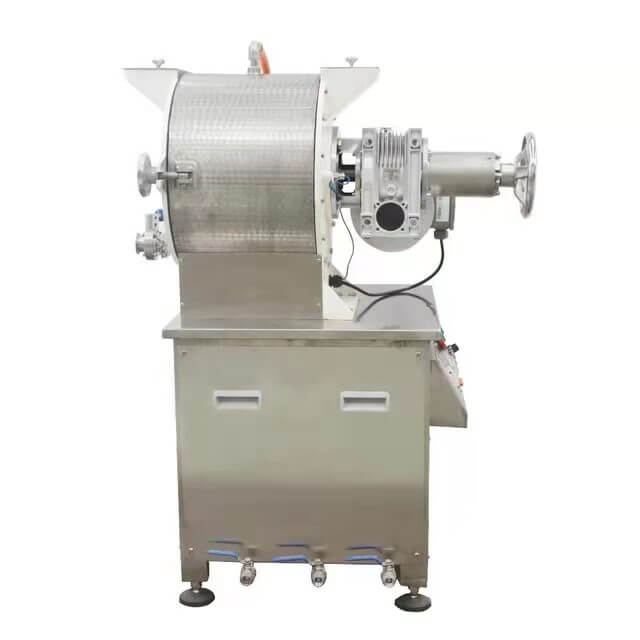

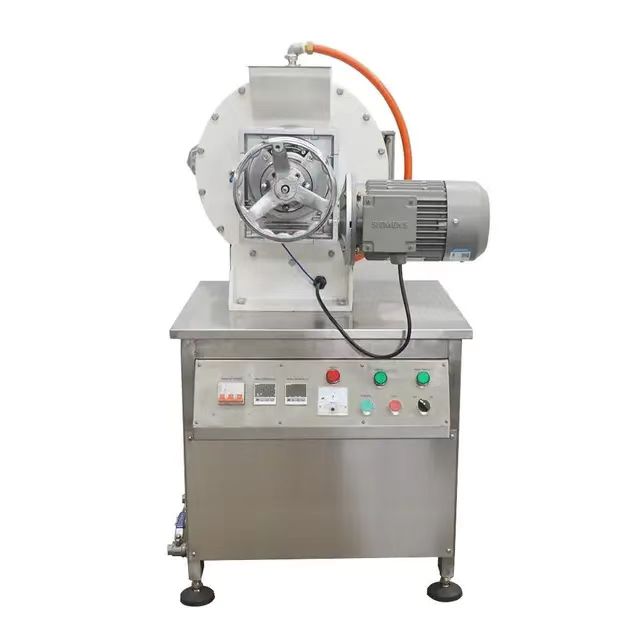

20L Conche Refiner
Chocolate Conche RefinerSpecifications
| Maximum capacity | 20L |
| Grinding fineness | 20-25micron |
| Main Axle Rotating Speed | 93rpm |
| Grinding time | 8-10hours |
| Main motor power | 1.5kw |
| Electrical heating power | 0.6kw |
| Weight | 295kg |
| Outside dimensions | 920*600*1110mm |
Description
The 20L Conche Refiner is a compact chocolate refining and conching machine with a hot water jacketed tank and manganese steel grinding bars.
With a maximum capacity of 20L, it grinds chocolate mass to 20-25 microns in 8-10 hours. The main motor is 1.5kW, electrical heating power is 0.6kW, and the machine weighs only 295kg with outside dimensions of 920*600*1110mm.
Ideal for chocolate shops, laboratories and product development.
Features
Outer cylinder is 304 SS, which means easy cleaning;
Front part can be open for cleaning completely and maintenance;

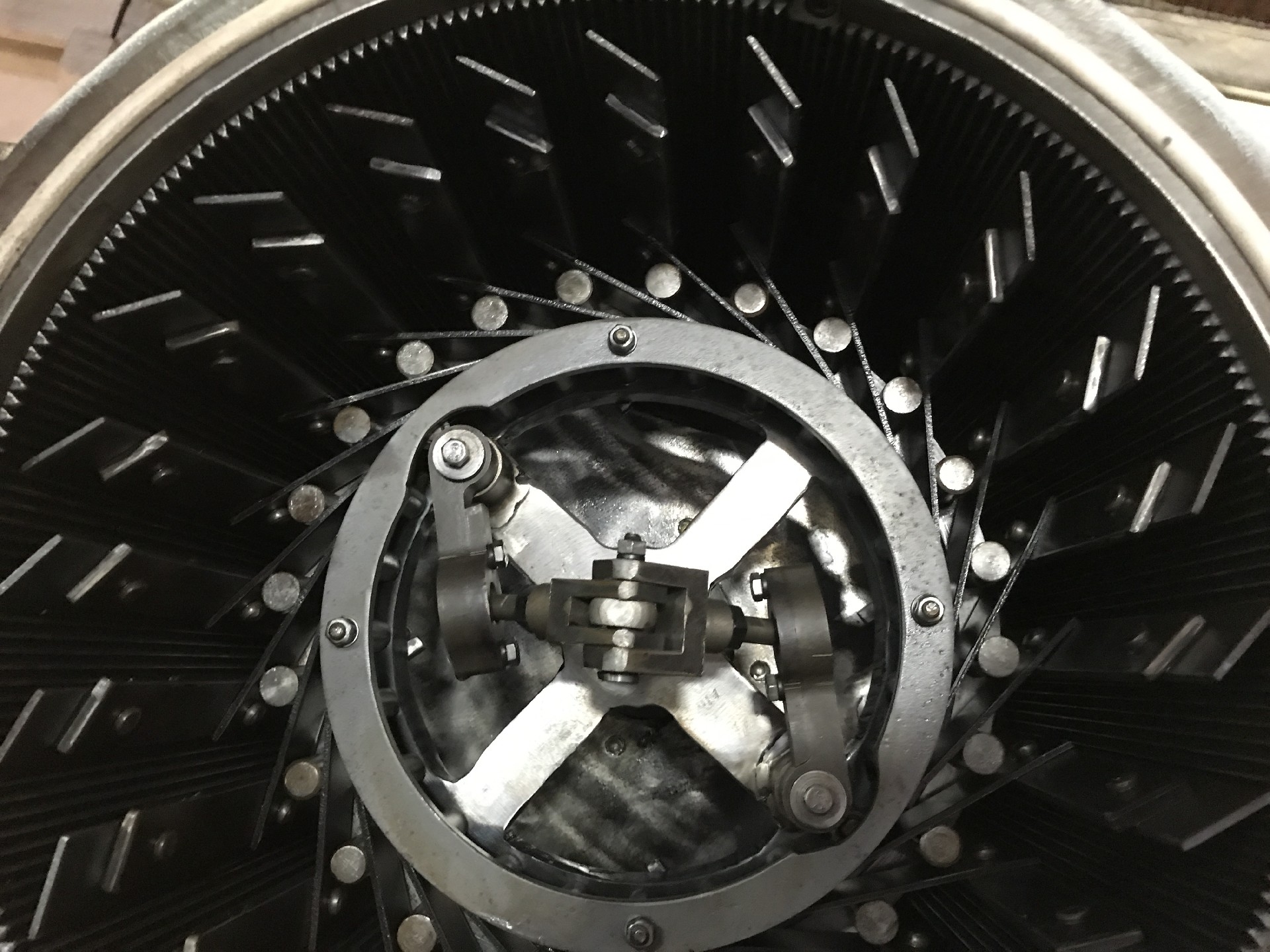

Manganese steel lining bars and blades bring longer lifetime;
It's simple structure and easy operation for users;
Voltage single phase or three phase is feasible;
With wheels for moving easily is optional.
Cost-Effective and good choice for beginners especially.
Product Advantages
Thanks to our quality-first philosophy and our spirit of excellence, our 20L&40L conche refiner has advantages of stable and reliable working condition; easy to maintain and less prone to damage. The blades and lining bars are made of high-strength manganese steel. At the same time, the lining bars adopt heat treatment process to enhance the hardness and have a longer service life. Except for motors and electrical appliances, almost all parts are made by ourselves, so we are not only doing assembly work, but also designing and manufacturing.
Not only is our 20L&40L conche refiner popular among chocolate shops and beginners, but also among industrial chocolate manufacturers. Because of small yields, it's suitable for researching and developing new chocolates; and benefited by simple structure and reliable quality, it's easy to clean and switch between different products.
