100L Conche Refiner
Chocolate Conche RefinerSpecifications
| Maximum capacity | 100L |
| Grinding fineness | 20-25micron |
| Main Axle Rotating Speed | 48rpm |
| Grinding time | 12-16hours |
| Main motor power | 5.5kw |
| Electrical heating power | 2.5kw |
| Weight | 1050kg |
| Outside dimensions | 1200*1150*1050mm |
Description

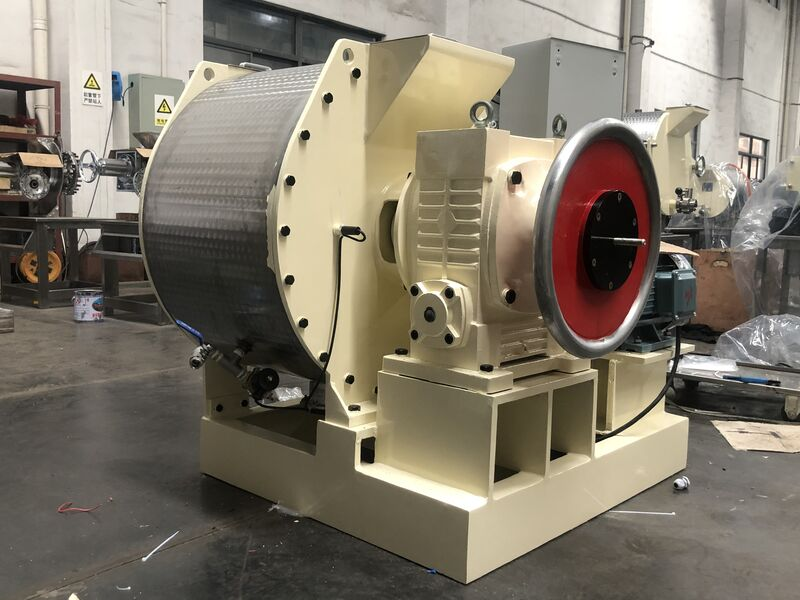

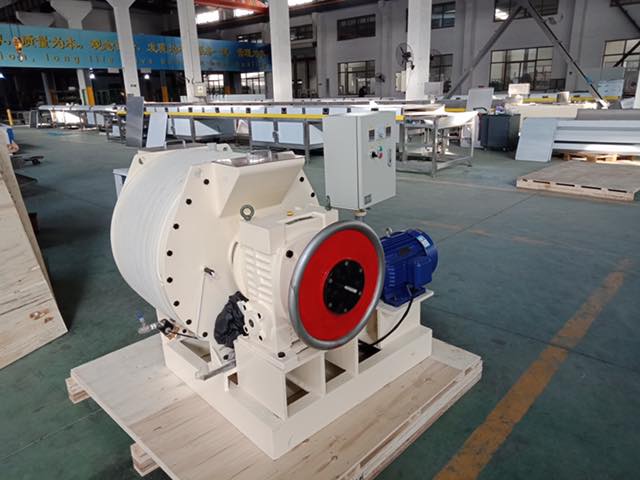

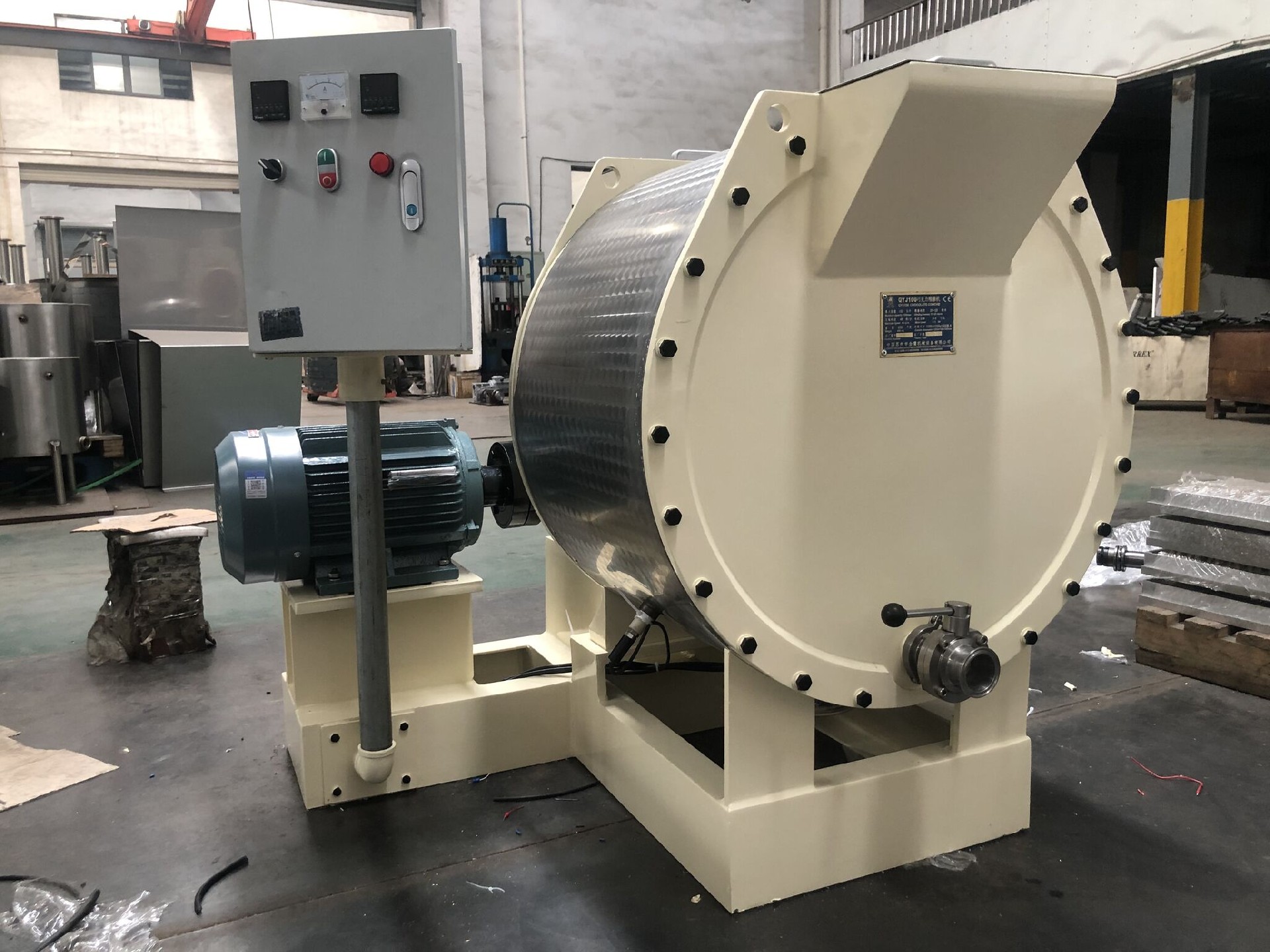

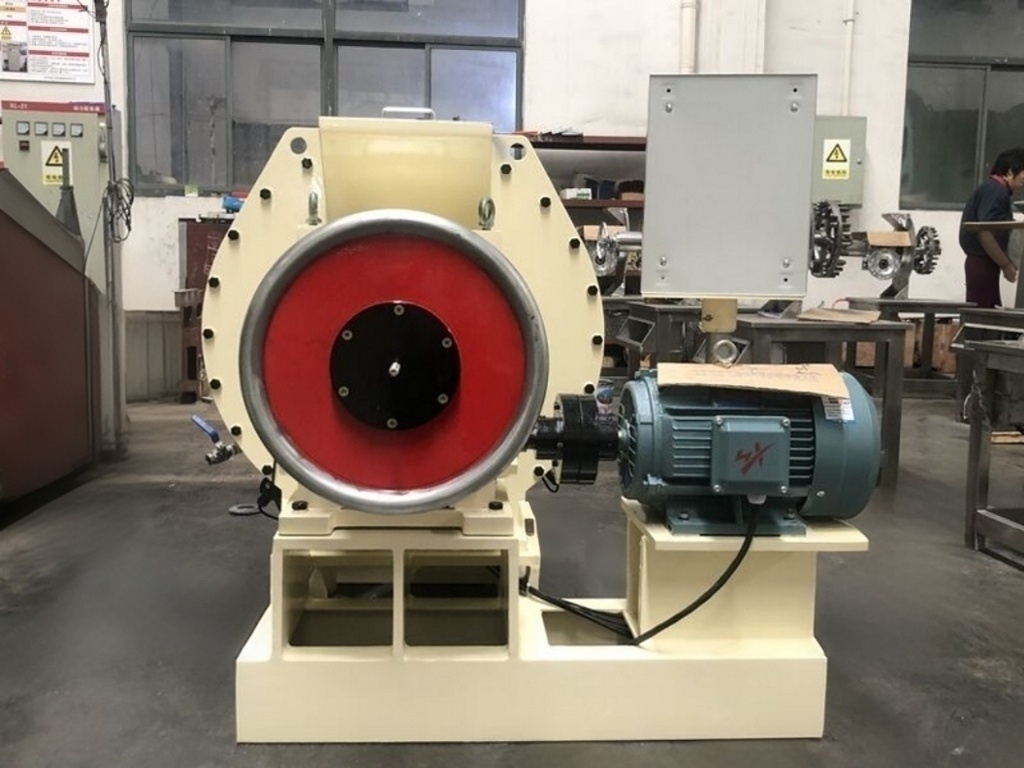

The 100L Conche Refiner refines and conches up to 100L of chocolate mass per batch, achieving a grinding fineness of 20-25 microns.
It features a hot water jacketed tank, a 5.5kW main motor and 2.5kW electrical heating. Grinding time is 12-16 hours, total weight is 1050kg and outside dimensions are 1200*1150*1050mm.
The machine is made of food-grade stainless steel and suits small and medium chocolate factories.
Features
Simple structure and easy operation for employees;
Stable and reliable working condition; no need maintenance frequently;
Cost-Effective and good choice for beginners especially.
Suitable for manufactures in chocolate, bakery and confectionery industry.
Product Advantages

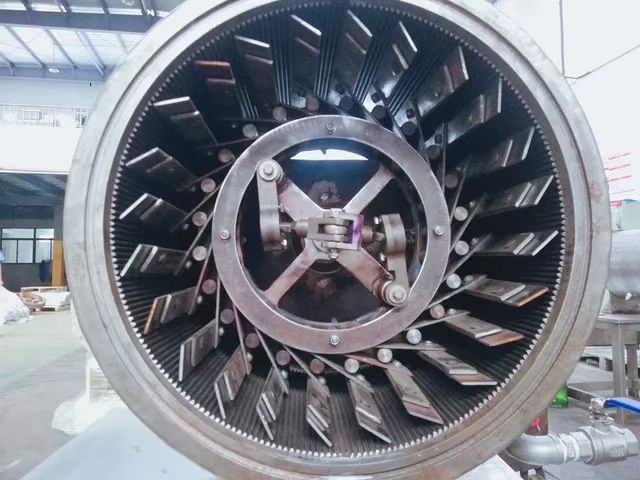

Thanks to our quality-first philosophy and our spirit of excellence, our conche refiners with advantages of stable and reliable working condition; easy to maintenance and less prone to damage. The blades and lining bars are made of high-strength manganese steel. At the same time, the lining bars adopt heat treatment process to enhance the hardness and have a longer service life.
Except for motors and electrical appliances, almost all parts are made by ourselves, so we are not only doing assembly work, but designing and manufacturing.
We can add accessories like PLC control, automatic weighing, water circulation and protective devices on the basis of conventional configuration, so as to meet the different needs of customer for automation, intelligent production and operation safety, food hygiene and so on. Our products are always based on customer's needs. We also always produce and manufacture our equipment with the customer in mind.
