500-1000-2000-3000-5000-10000L Chocolate Holding Tank

Double-jacketed chocolate holding tank from 500L to 5000L with melting, stirring and storage functions.

Specifications

Maximum capacity(L)	500	1000	1500~5000
Main axle rotating speed (rpm)	22.5	22.5	22.5
Main Motor power(kw)	1.1	1.5	1.1~5
Electrical heating power(kw)	5	7.5	7.5~15
Heat preservation power(kw)	2.5	2.5	2.5~5
Weight(kg)	515	785	1010~3000
Outside dimensions(mm)	φ1035×1480	φ1250×1700	φ1400×1800~φ2000×2500

Description

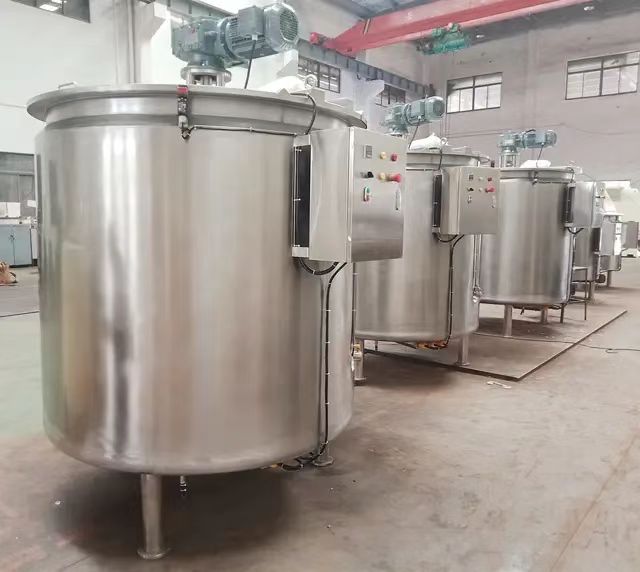

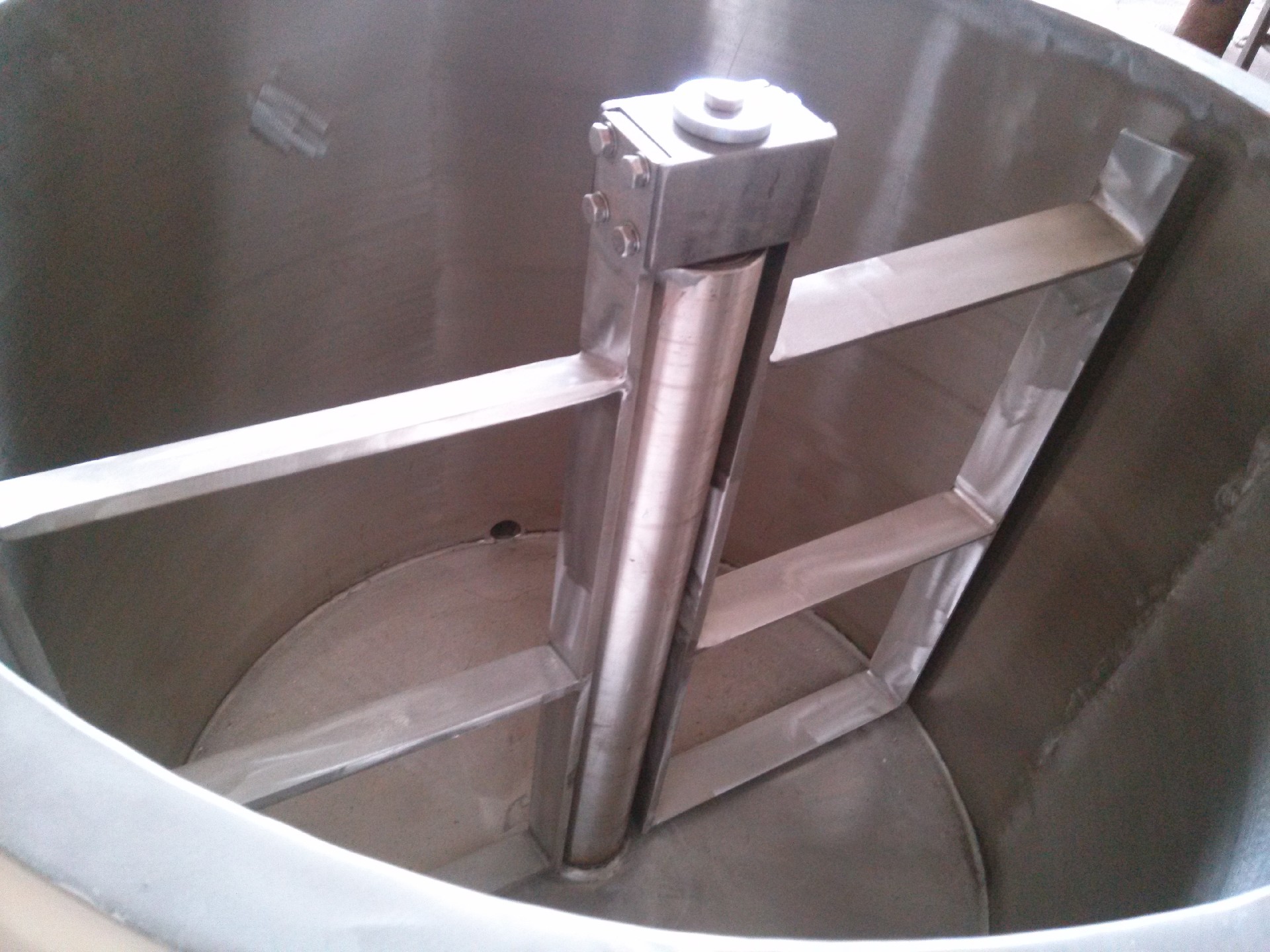

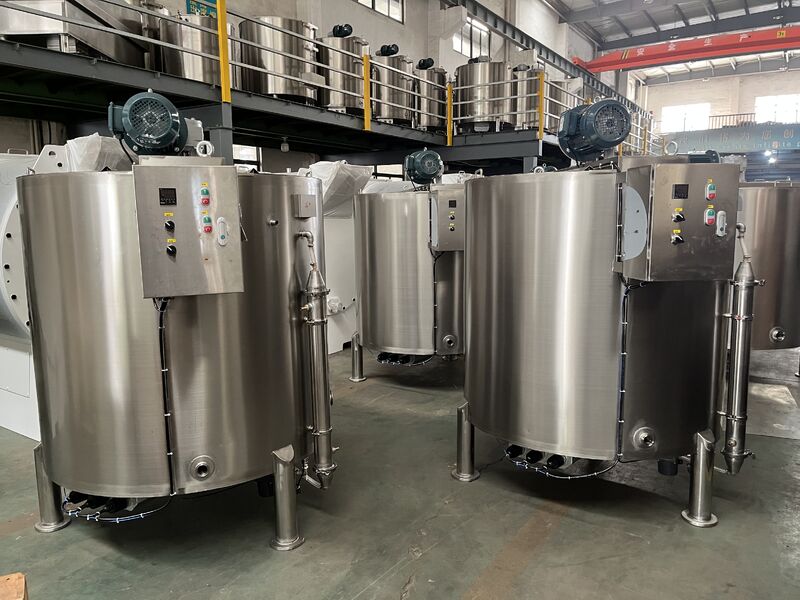

The Storage Tank is a double-jacketed chocolate holding tank combining melting, stirring and storage functions. It includes a mixer, complete control panel, and temperature control for water and chocolate, with top-driven gate-type stirrers.

Available in 500L, 1000L and 1500-5000L capacities, with main motor power of 1.1-5kW, electrical heating of 5-15kW and heat preservation power of 2.5-5kW.

Made of 304 stainless steel, it conforms to food safety requirements, with ball or butterfly valve outlets and geared motor drive for reliable operation.

Features

Our small chocolate holding tank is made by 304 stainless steel which conforms to food safety and hygiene;

Our small chocolate holding tank has functions of melting, stirring and storage;

With wheels at bottom for moving easily;

It's beneficial to degassing, desmelling, dehydrating and preventing the chocolate mass from the separation of oil and grease etc;

Lid can be removed for cleaning and feeding.

It's suitable for handcraft chocolate shop and chocolate labs.

Product Advantages

Chocolate holding tank plays an important role in chocolate production process. Our 30L&100L small chocolate holding tank is double wall design and equipped with electrical heaters and thermometers. You can set different temperature according to different chocolates and recipes. It's beneficial to degassing, desmelling, dehydrating and preventing the chocolate mass from the separation of oil and grease etc.

Not only can small chocolate holding tank be used to store refined chocolate mass, cream filling, etc, but also be used as a buffer tank for supplying chocolate mass for small chocolate enrober, semi-automatic depositor, and manual chocolate moulding machine, etc. Since it's designed and manufactured for small chocolate manufacturers and labs mainly, our small 30L&100L chocolate holding tank is made by 304 SS, with wheels and dismountable lid. These features are important when operators are researching and developing new chocolates.

FAQ

It's 304 SS for outside and inside the tank. Moreover, we can use 316 SS if customer needs.

Our chocolate holding tank is double jkt and with electrical heaters at bottom.Customer just needs to fill the water into the jkt before running. So it does not need accessories like gas or vapor.

We have a full set of parts in our warehouse, which can be sent out immediately, and customers can receive them in 3-7 days.

30-45 days after receiving your advanced payment and confirmed technical parameters sheet.

We have a full set of parts in our warehouse, which can be sent out immediately, and customers can receive them within 3-7 days.

It's a pity that our chocolate holding tank cannot be connected to outer hot water circulation. The reason is our chocolate holding tank is not a pressure vessel, which means it cannot bear the pressure/vapor which caused from outer hot water circulation. But we can add a water pump for inner hot water circulation.

Yes. We will send the spare parts like electrical heaters and valve, etc with our chocolate holding tank together.
