30-100L Chocolate Holding Tank

Double-jacketed 30L/100L chocolate holding tank with mixer and temperature control.

Specifications

Chocolate capacity	30L	100L
Main axle rotating speed	22.5rpm	22.5rpm
Main motor power	0.37kw	0.75kw
Electrical heating power	1kw	2.5kw
Holding power	1kw	2.5kw
Weight	60kg	200kg
Outside dimensions	φ500×600mm	φ750×700mm

Description

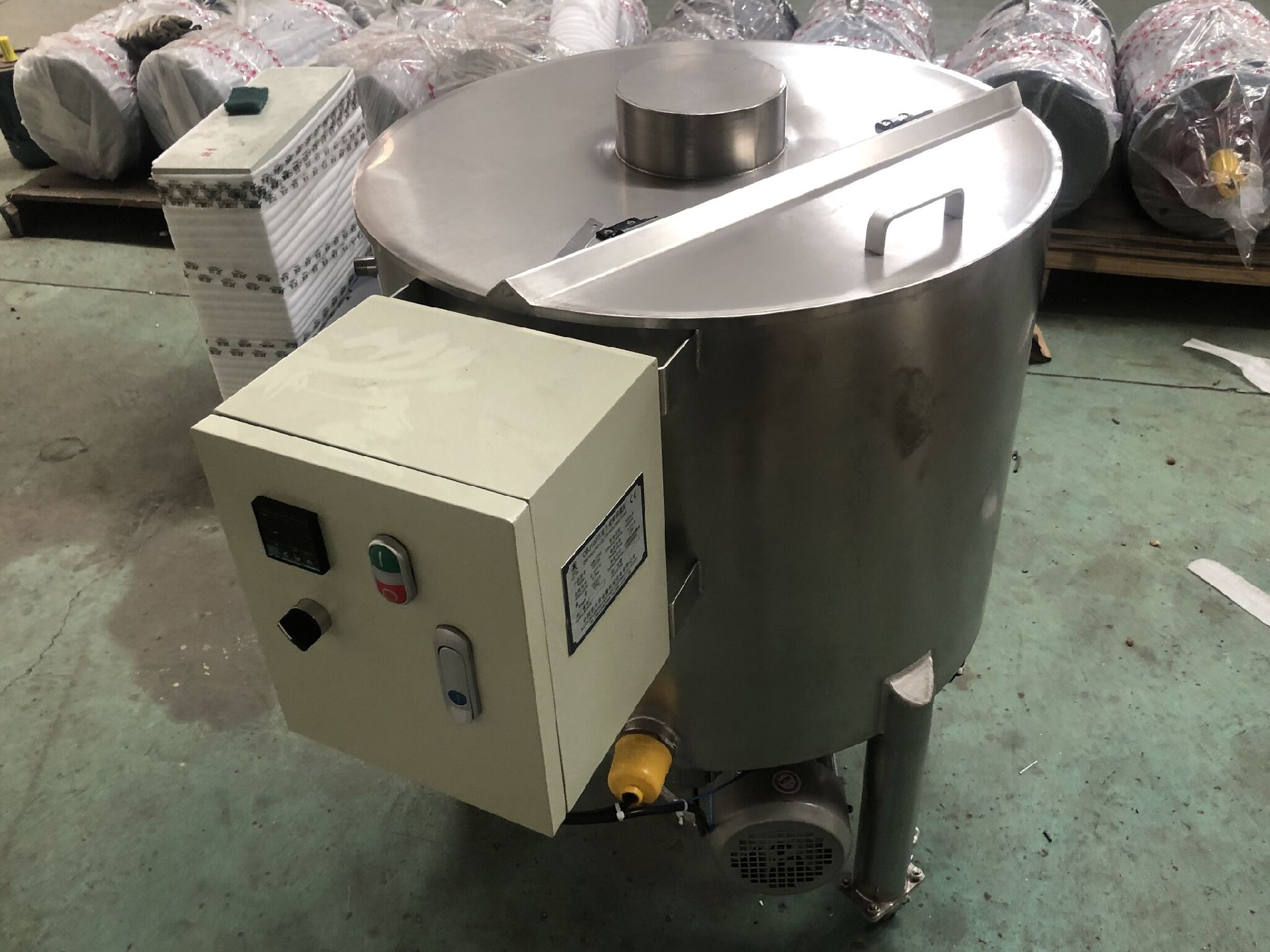

The Chocolate Storage Tank is a double-jacketed holding tank with a mixer for chocolate, a complete control panel and temperature control systems for both water and chocolate. Top-driven gate-type stirrers keep the mass homogeneous.

Two capacities are available: 30L and 100L, with main motors of 0.37kW and 0.75kW, electrical heating of 1kW and 2.5kW, and weights of 60kg and 200kg.

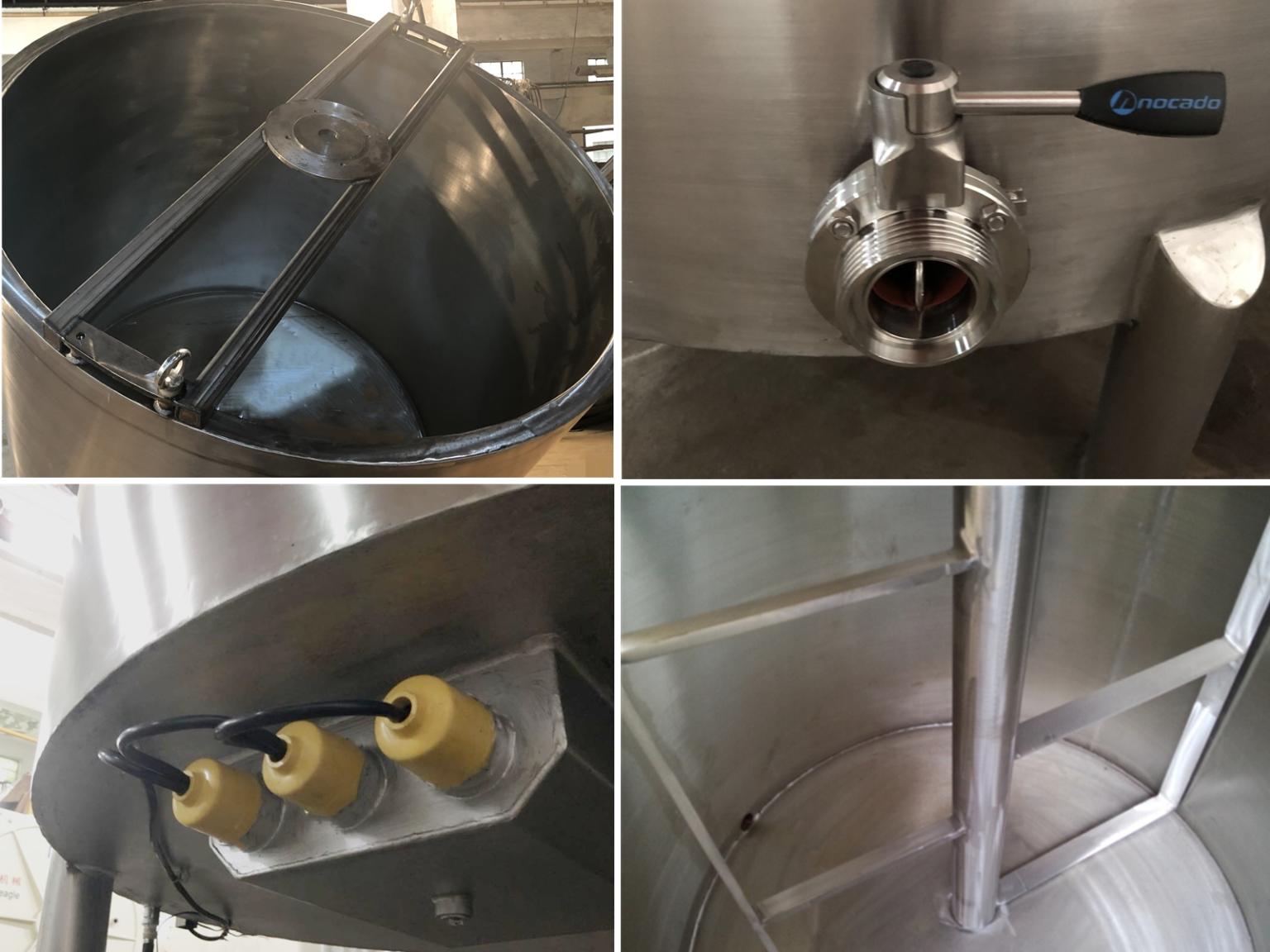

Water jacketed insulation, ball valve or butterfly valve outlets and wheels at the bottom for easy moving make it convenient for daily production.

Features

Our small chocolate holding tank is made by 304 stainless steel which conforms to food safety and hygiene;

Our small chocolate holding tank has functions of melting, stirring and storage;

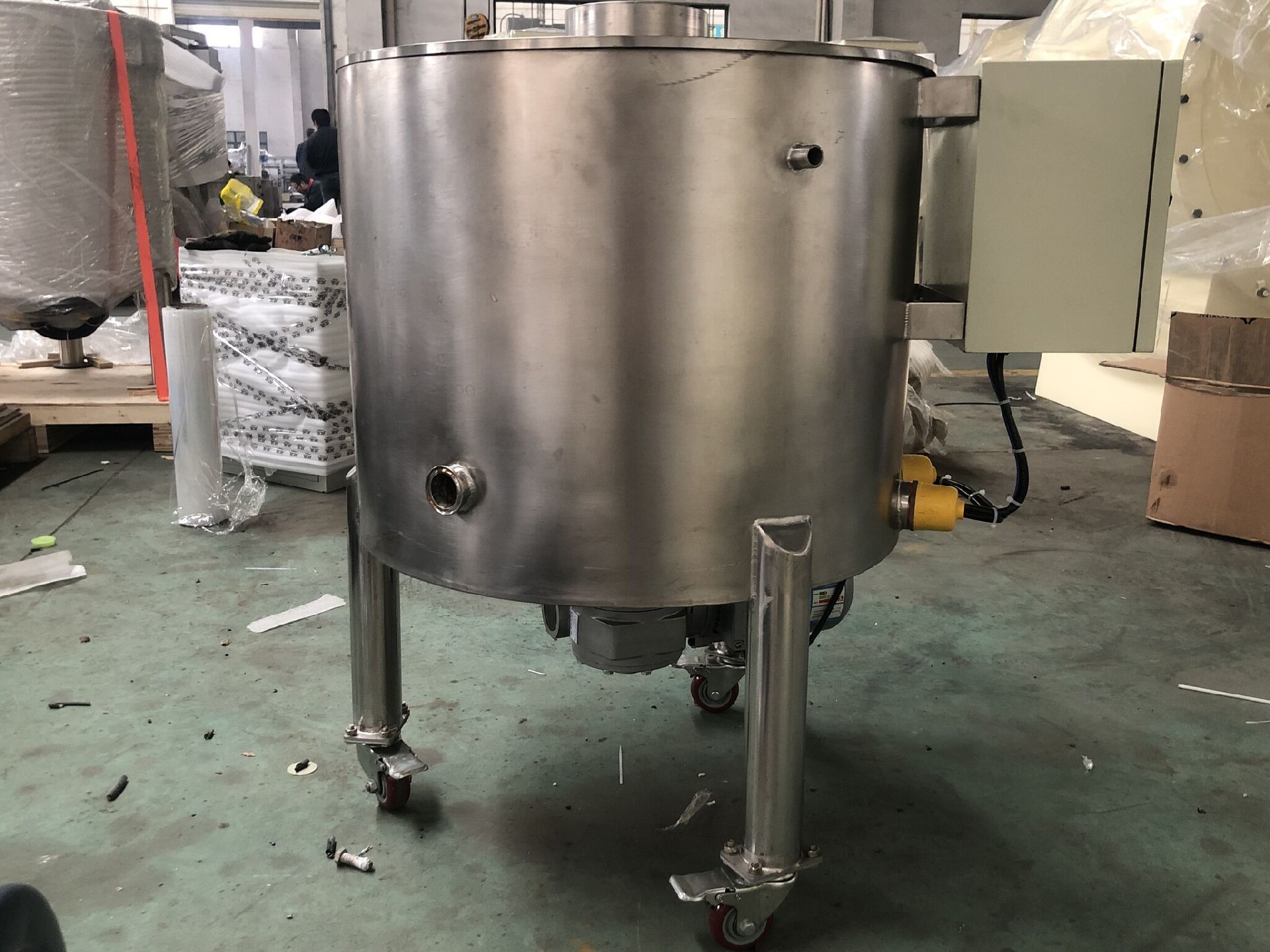

With wheels at bottom for moving easily;

It's beneficial to degassing, desmelling, dehydrating and preventing the chocolate mass from the separation of oil and grease etc;

Lid can be removed for cleaning and feeding.

It's suitable for handcraft chocolate shop and chocolate labs.

Product Advantages

Chocolate holding tank plays an important role in chocolate production process. Our 30L&100L small chocolate holding tank is double wall design and equipped with electrical heaters and thermometers. You can set different temperature according to different chocolates and recipes. It's beneficial to degassing, desmelling, dehydrating and preventing the chocolate mass from the separation of oil and grease etc.

Not only can small chocolate holding tank be used to store refined chocolate mass, cream filling, etc, but also be used as a buffer tank for supplying chocolate mass for small chocolate enrober, semi-automatic depositor, and manual chocolate moulding machine, etc. Since it's designed and manufactured for small chocolate manufacturers and labs mainly, our small 30L&100L chocolate holding tank is made by 304 SS, with wheels and dismountable lid. These features are important when operators are researching and developing new chocolates.

FAQ

It's 304 SS for outside and inside the tank. Moreover, we can use 316 SS if customer needs.

Our chocolate holding tank is double jkt and with electrical heaters at bottom.Customer just needs to fill the water into the jkt before running. So it does not need accessories like gas or vapor.

We have a full set of parts in our warehouse, which can be sent out immediately, and customers can receive them in 3-7 days.

30-45 days after receiving your advanced payment and confirmed technical parameters sheet.

We have a full set of parts in our warehouse, which can be sent out immediately, and customers can receive them within 3-7 days.

It's a pity that our chocolate holding tank cannot be connected to outer hot water circulation. The reason is our chocolate holding tank is not a pressure vessel, which means it cannot bear the pressure/vapor which caused from outer hot water circulation. But we can add a water pump for inner hot water circulation.

Yes. We will send the spare parts like electrical heaters and valve, etc with our chocolate holding tank together.
