Chocolate One Shot Moulding Machine
Moulding LineSpecifications
| Model | Q110 | Q111 | Q112 | Q113 |
| Capacity(kg/batch) | 0.5~1.5 | 0.8~2.5 | 0.8~2.5 | 0.8~2.5 |
| Total power(kw) | 9 | 21 | 23 | 28 |
| Refrigeration unit(HP) | None | 15 | 20 | 20 |
| Mold size(mm) | 275x175x20 | 280x200x30470x200x30 | 280x200x30470x200x30 | 280x200x30470x200x30 |
| moulds quantity(pcs) | 270 | 380 | 380 | 420 |
| Weight(kg) | 1000 | 4800 | 5800 | 6200 |
| Outside dimension(mm) | 3600x725x1560 | 17010x1010x1330 | 17060x1005x1870 | 18600x1200x2400 |
Description

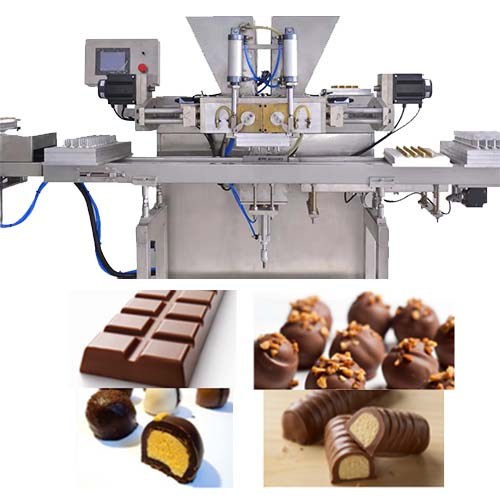

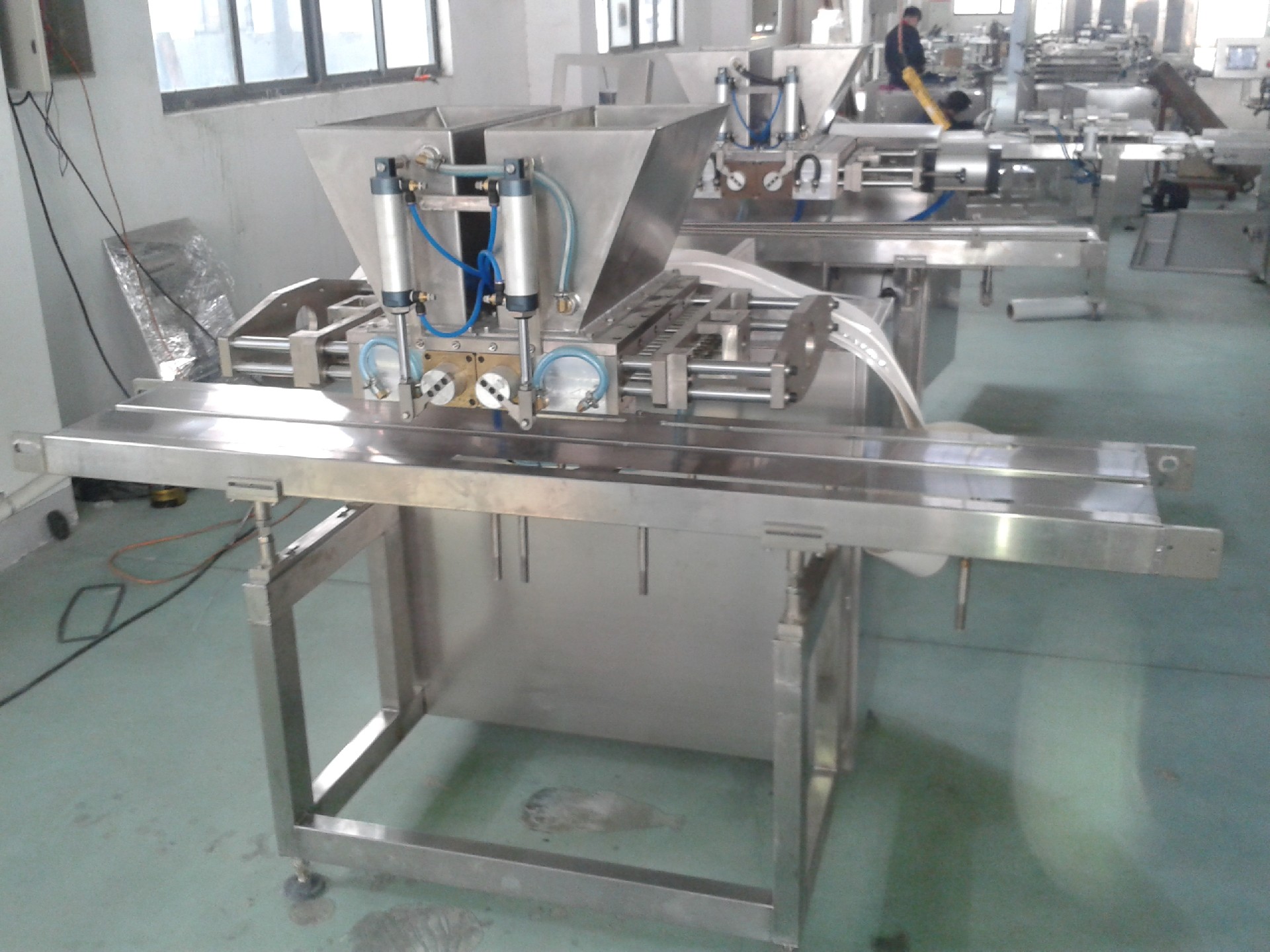

Our One Shot Depositing Machine produces single-color and centre-filled chocolate products. Four models are available: Q110, Q111, Q112 and Q113, with batch capacities of 0.5-2.5kg and total power from 9kW to 28kW.

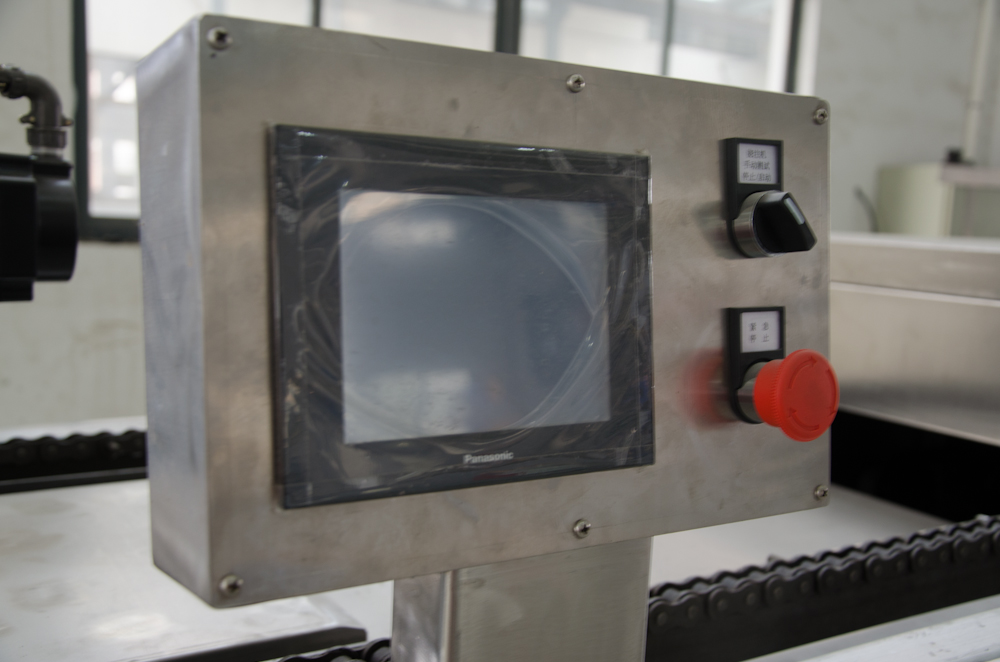

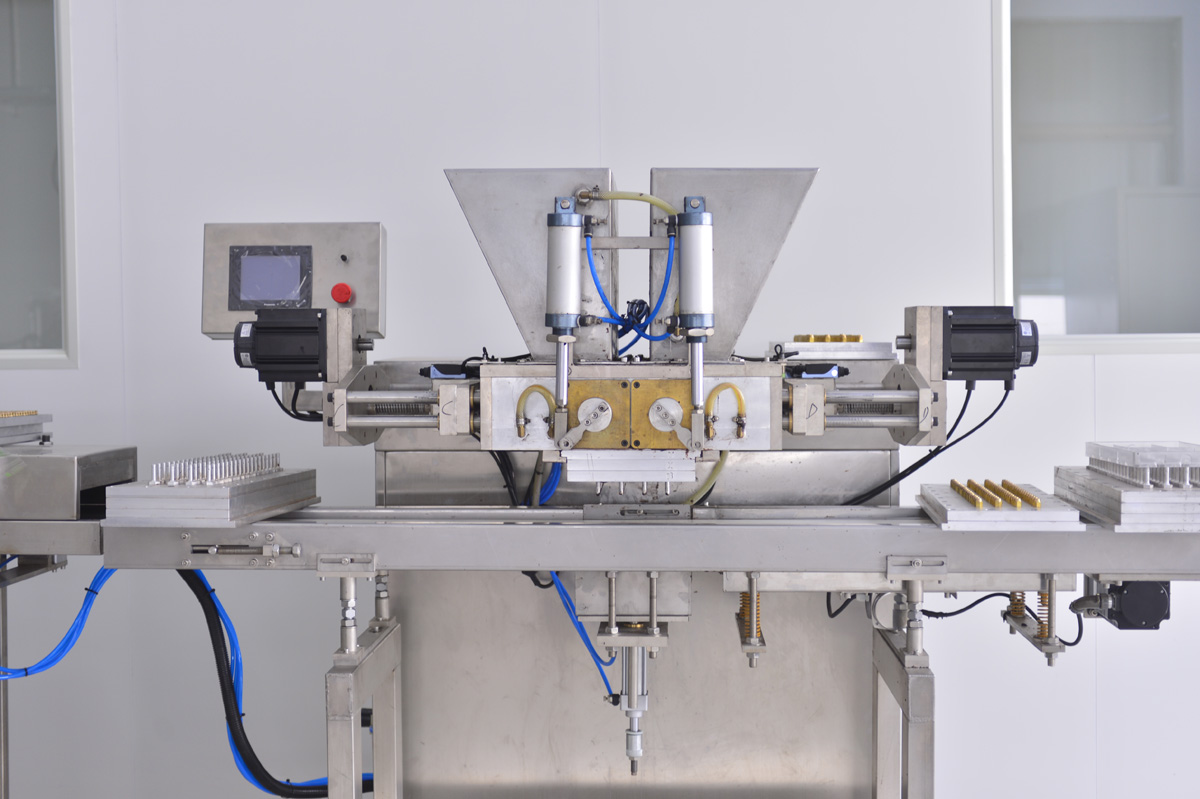

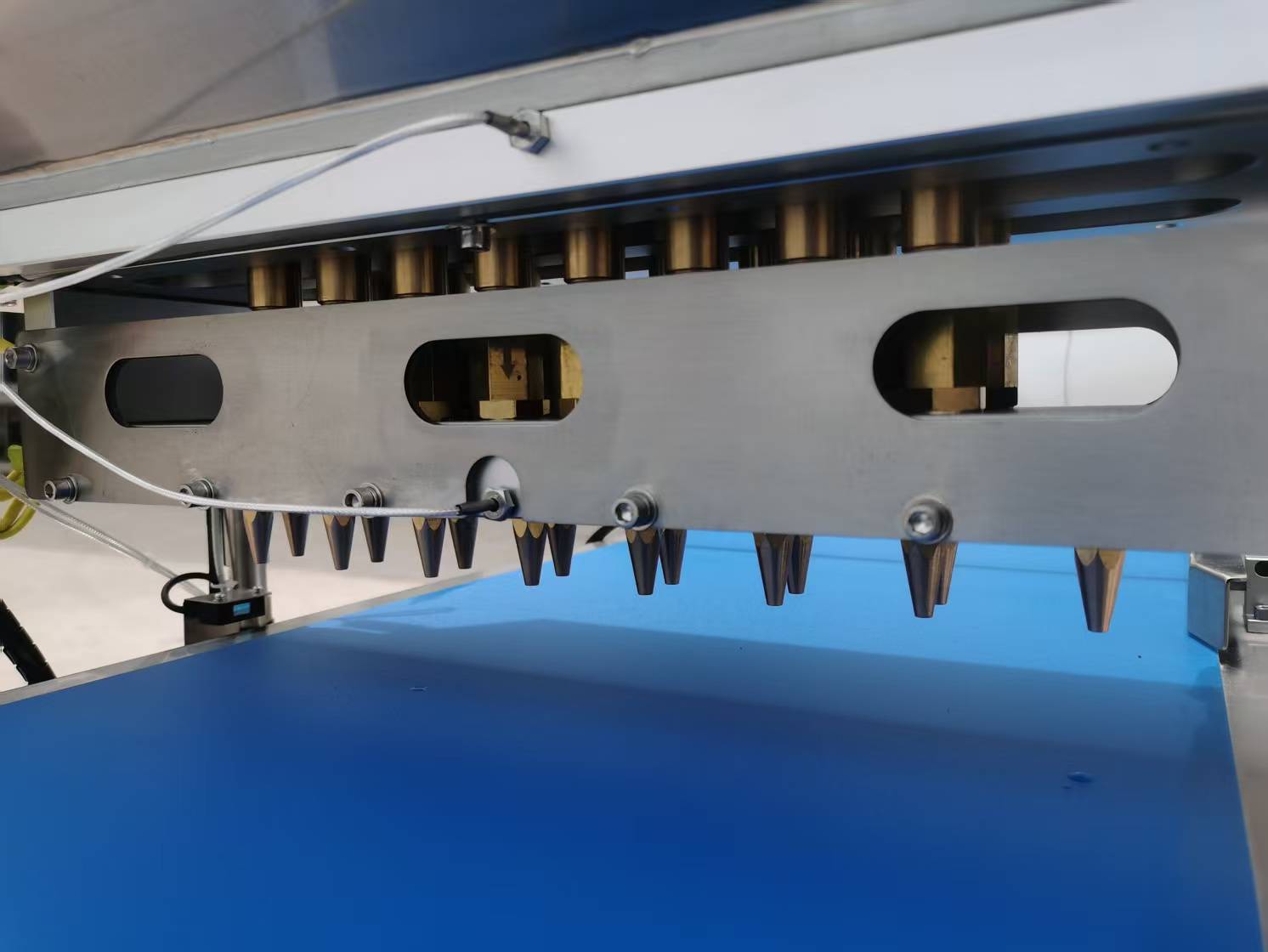

The machine runs at up to 12 molds per minute with servo drive and PLC touchscreen control. Molds are preheated to prevent thermal shock, lifted to the nozzles for precise single-shot depositing, vibrated to remove air bubbles, then cooled and demoulded automatically.

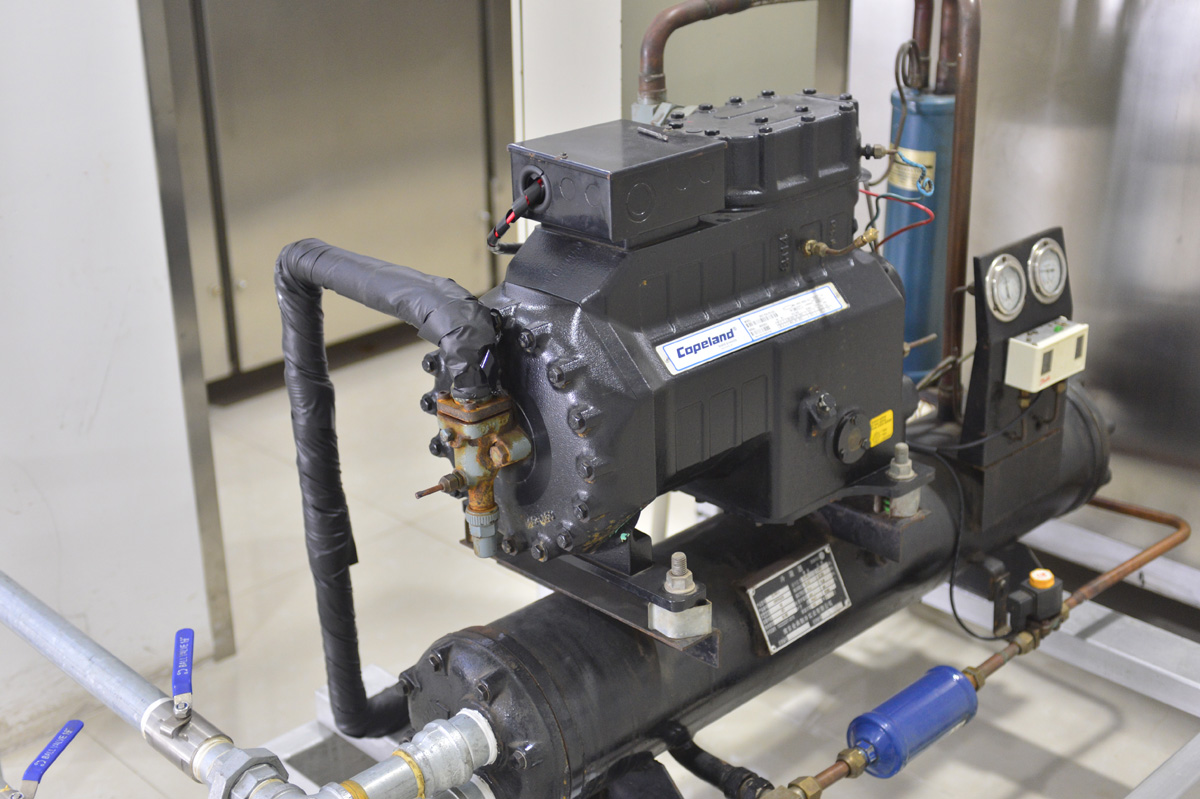

Optional cooling tunnels with 15-20HP refrigeration units accommodate outputs of 270-420 molds per cycle.
Features
Capacity is from 80kg/h-300kg/h which can meet different customer's requirements;
It's flexible for production of different kinds of chocolate on one chocolate moulding machine;
European brand motors and components which can bring perfect products;

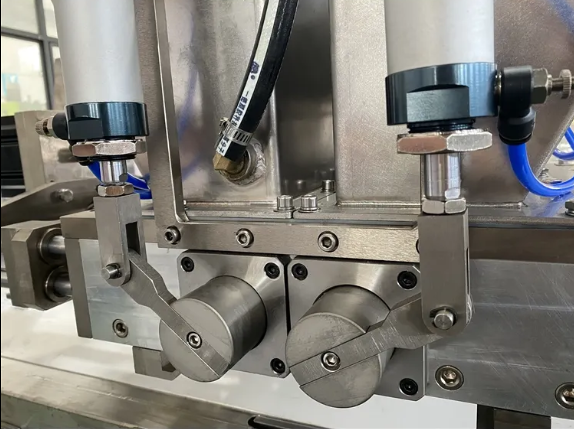

Servo motor depositor or pneumatic depositor is optional;
Accessories like biscuit feeding device, nuts feeding device, etc are optional;
It's possible to upgrade to modular production line.
Product Advantages
Our chocolate moulding machine is designed and manufactured to produce pure chocolate and compound chocolate. By changing the distribution plate and moulds, it can produce different kinds of chocolate, like solid chocolate, chocolate with filling and inclusion, etc.
Depends on the types of chocolate, it will be one shot depositor, two depositors, three depositors moulding machine or shell moulding machine. So our chocolate moulding machine can be customized based on customer's final products and capacity. Besides customized depositors, we can customize the length of cooling tunnel too. We can move the cooling compressor on top of cooling tunnel so as to save space.
The motors and electrical components are overseas famous brands which guarantee the depositing system and temperature adjusting system work very well and bring perfect products for our customers. Moreover, we have strict production process to make sure all parts and components assembled perfectly and make sure our chocolate moulding machine have good working condition even after 10 years.
