200-500-1000L Chocolate Melting Tank
Melting TankChocolate melting tank for cocoa butter and palm oil, in 200L, 500L and 1000L.
Specifications
| Chocolate capacity | 200L | 500L | 1000L |
| Main axle rotating speed | 22.5rpm | 24rpm | 24rpm |
| Motor power | 1kw | 1.5kw | 2.2kw |
| Electrical heating power for water tank | 4kw | 4kw | 4kw |
| Circular water pump power | 120w | 120w | 120w |
| Outside dimensions | φ850×1060mm | 1450×1150*1800mm | 1650*1350*1850mm |
Description

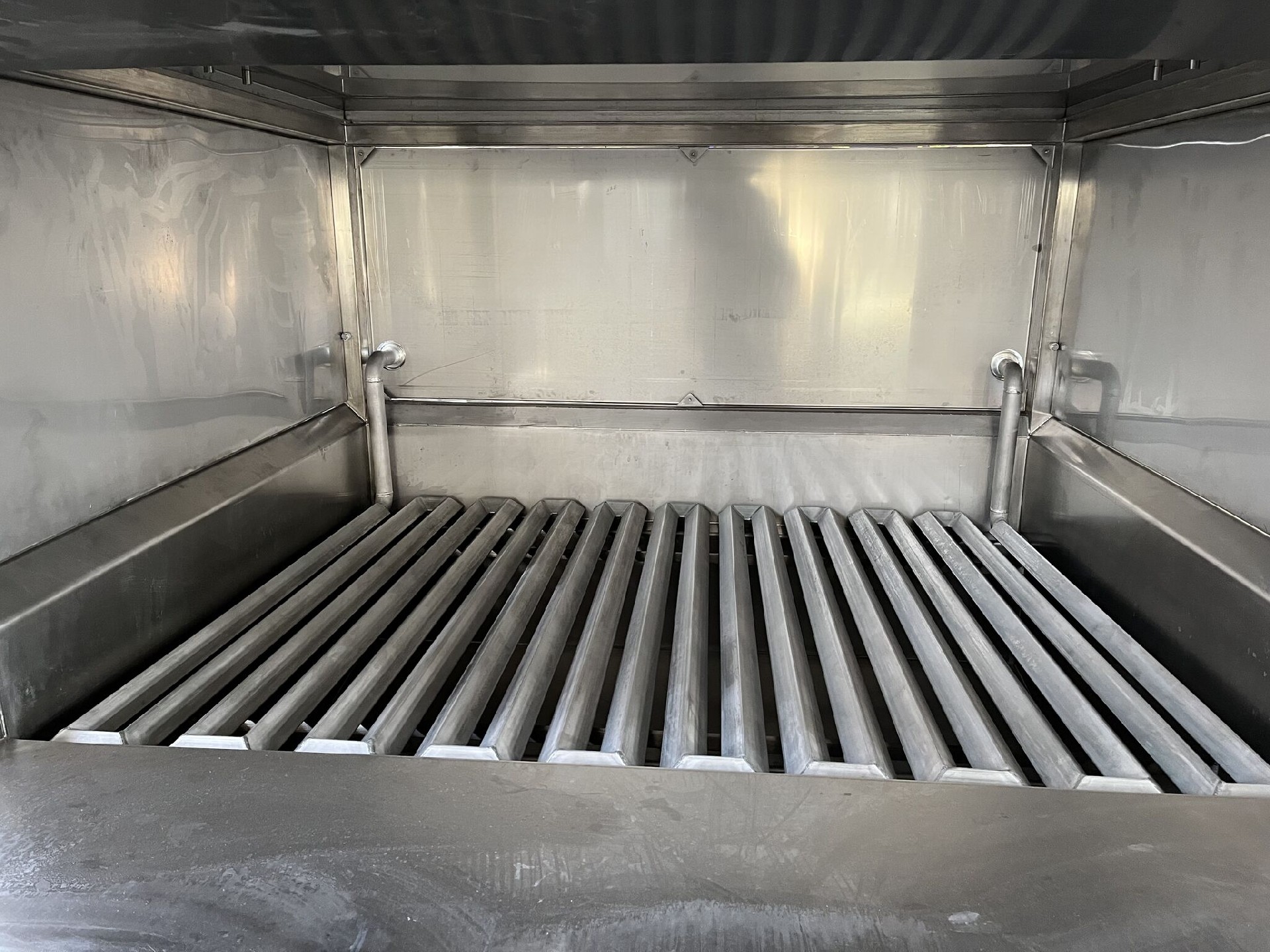

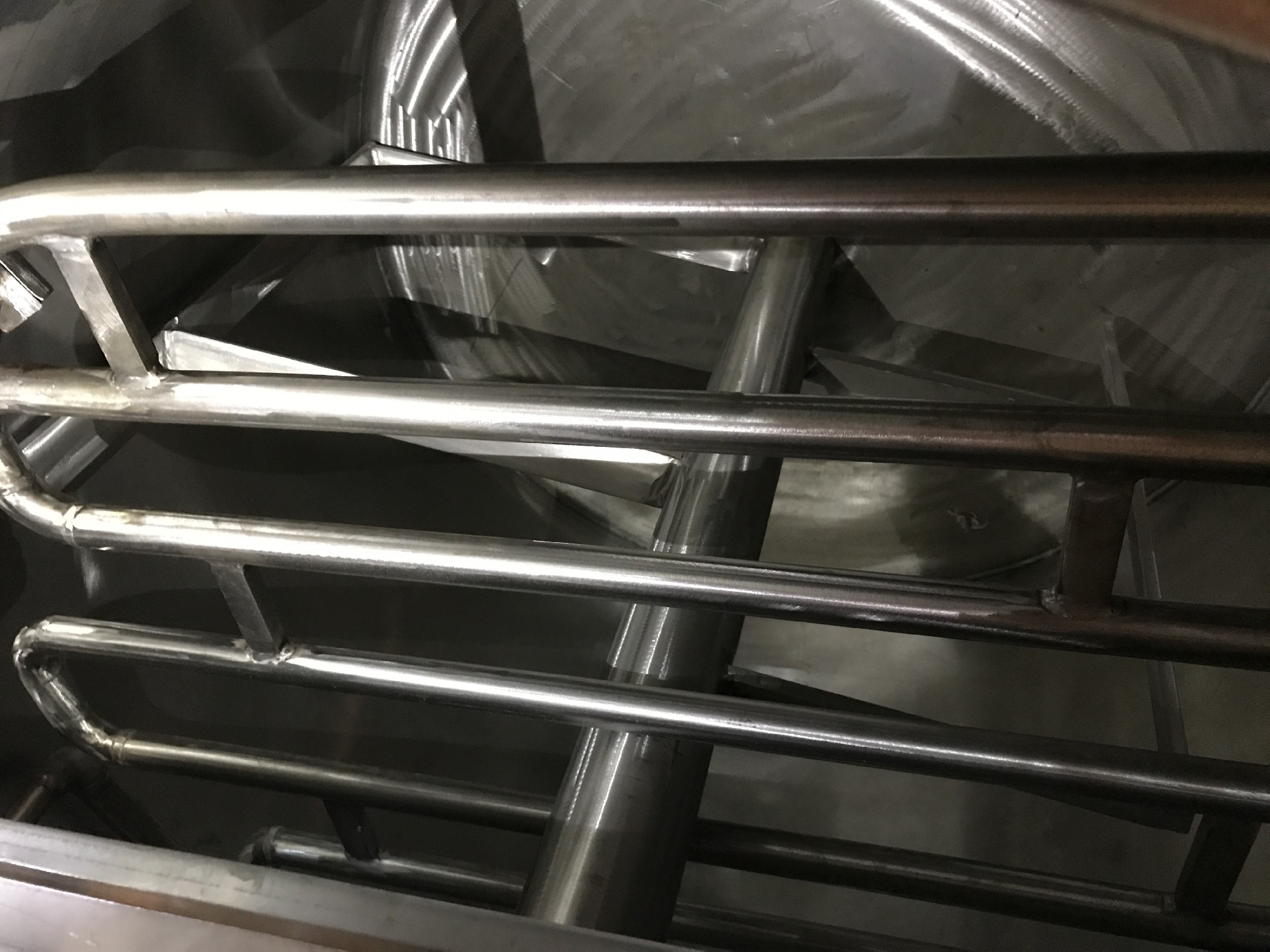

The Chocolate Melting Tank is one of the main machines in chocolate production, used for melting cocoa butter, palm oil and other fats. It is designed with a double jacket and hot water pipes inside the tank.
Three capacities are available: 200L, 500L and 1000L, with motor power of 1kW, 1.5kW and 2.2kW, and 4kW electrical heating for the water tank. A 120W circulation water pump keeps the temperature uniform.

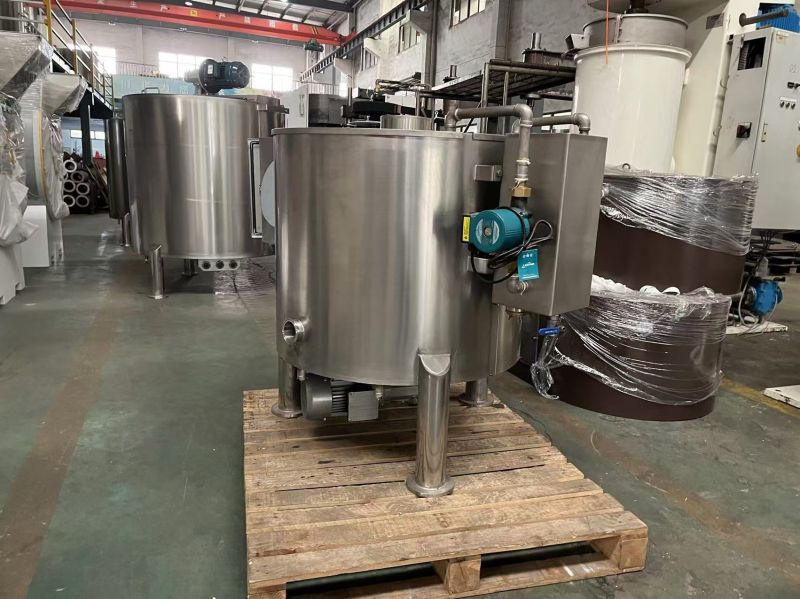

Depending on capacity, both cylinder and rectangle shapes are available. With a double jacket pipeline and chocolate pump, it enables automatic feeding and avoids contamination of raw materials.
