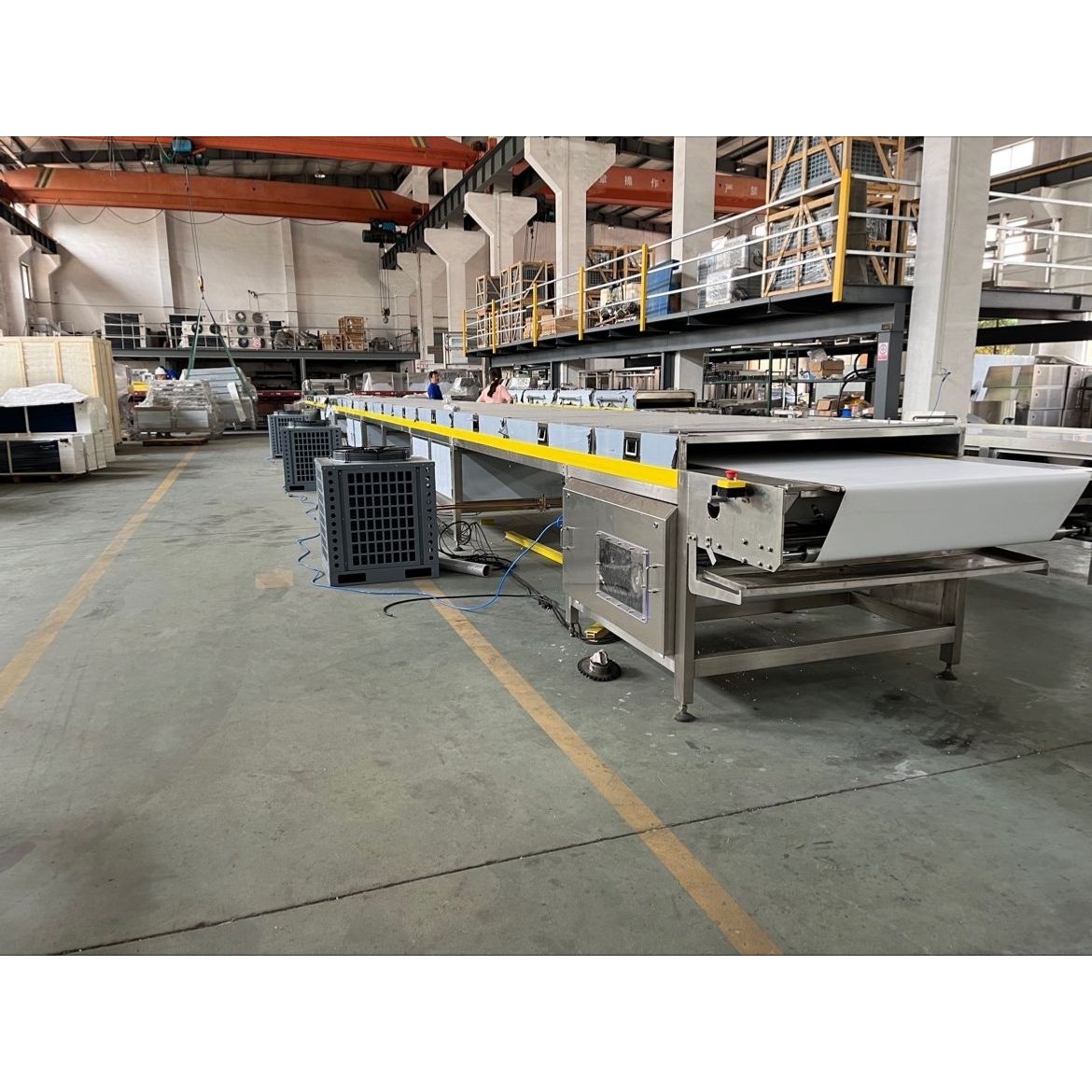

600-1000mm Chocolate Drops Line

Chocolate drops and chips production line with 600/1000mm belt width and 50-200 kg/h capacity.

Specifications

Belt Width(mm)	600	1000
Capacity(kg/h)	50-100	80-200
Minimum Gram(g)	0.1	0.1
Cooling Tunnel Length(m)	10	16
Total power (kw)	8	12
Outside dimension(mm)	120009501500	1800013001500

Description

Our Chocolate Drops Line produces chocolate drops, chips and buttons with a minimum weight of just 0.1g per piece.

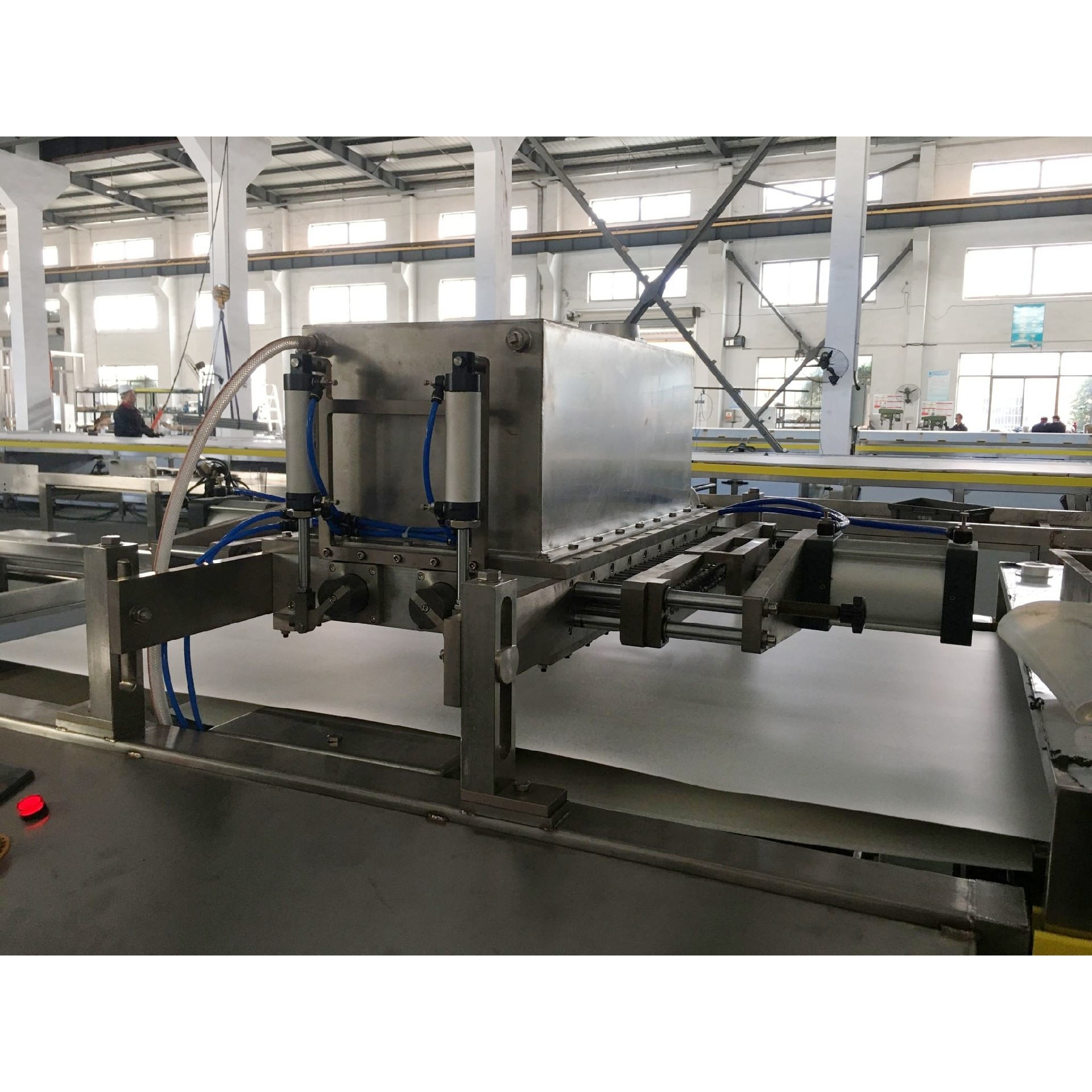

By changing the distribution plate and adjusting the pneumatic depositor, it can produce various shapes, with or without tails, and even double-color chips.

Two belt widths are available: 600mm and 1000mm, with capacities of 50-100 kg/h and 80-200 kg/h, cooling tunnel lengths of 10m and 16m, and total power of 8kW and 12kW.

The 304 stainless steel construction conforms to food safety and hygiene standards, and the chips can be used in bakery decoration or melted as chocolate mass.

Features

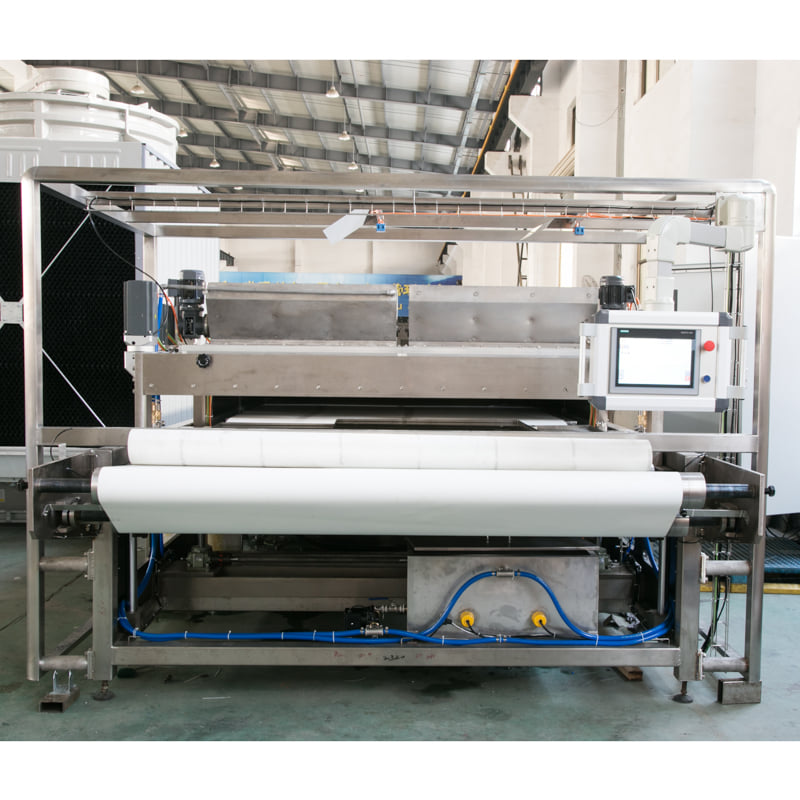

Pneumatic and servo motor depositor for optional;

Width and length of cooling tunnel can be customized;

The cooling tunnel can be shared with enrober or semi-automatic depositor together so as to save space, cost and produce more kinds of products;

There could be a vermicelli depositor at the side of chocolate chips depositor so as to produce two products on one line;

It's suitable for pure chocolate, compound chocolate and cocoa mass.

Product Advantages

Our chocolate chips line applies to not only chocolate, but also cocoa mass too, so this line is suitable for both of chocolate manufacturers and cocoa beans processors. We have 600MM to 2000MM chocolate chips line for customers choice. No matter what they need is 50kg/h or 500kg/h, we can supply for proper chocolate chips line for them.

Chocolate chips, drops and buttons are used in B2B business mainly, so they will be melted again when they arrive client's workshop. Compared with 500g or 1Kg blocks, it takes shorter time to melt these chips, drops and buttons. So it's more flexible and convenient to small and medium manufacturers. Our chocolate chips line can make 0.08g-0.1g chips (10,000-12,000 pcs/kg)， which means it can be put on cookies and bars to improve the flavors and appearance.

FAQ

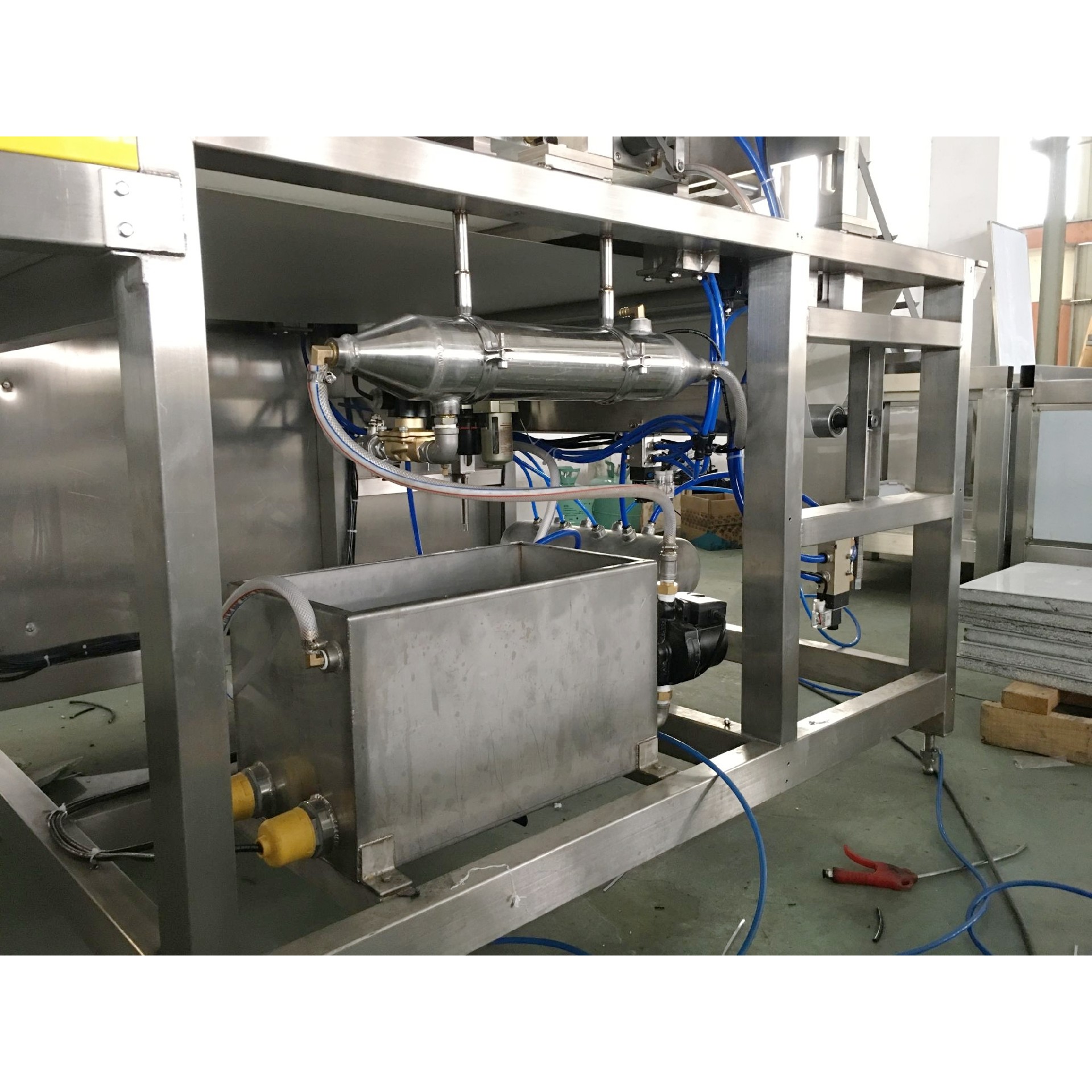

Chocolate chips line that for pure chocolate will have tube type heat exchanger and stirrer to keep tempered chocolate in hopper in proper temperature.

Generally, our chocolate chips line just needs air compressor. But if you choose water cooling compressors or cold water cooling plate, you will need cooling water tower or cooling water system. We can supply these accessories or you can buy them from your local market.

We have a full set of parts in our warehouse, which can be sent out immediately, and customers can receive them in 3-7 days.

60-90 days after receiving your advanced payment and confirmed technical parameters sheet.

Firstly, you need to tell us how many kinds of products you want to make, then we will design the distribution plate; Secondly, you can produce different chips, drops and buttons by changing the distribution plate.

Yes. We can supply A to Z chocolate chips line for our customer. The whole chips line will include chocolate mass processing machinery, tempering machine, chocolate chips line, etc.
